The Largest Deep-Sea Panga

PANGA W-33

LOA 32.71'

Dry Weight 1,808 lbs

Capacity 6,615 lbs

HP Range 115–250 HP

Top Speed 42 mph

Cruise Economy 4 mpg

Home › Models › W-33

Overview

About the W-33

The W-33 is the pinnacle of the Panga hull family — the largest platform we build, designed for operators whose work demands maximum capacity, range, and deck space without switching to a heavier, less efficient hull type. At over 32 feet and 6,615 pounds of rated capacity, it handles crew, passengers, and heavy commercial gear in configurations no smaller Panga can support.

A 150 HP Yamaha is the base price-point motor — about 30 mph at cruise and 35–42 mph wide open. The all-around ideal setup is 250 HP. Twins from 115 HP × 2 through 300 HP × 2 are also available. For deep-sea charter captains, commercial fishing operations, and workboat fleets running serious offshore miles, the W-33 is the answer.

Built For

Deep-sea commercial fishingLarge passenger charterExtended offshore operationsHeavy-duty workboatMulti-day crew trips

Build This Model → Ask a Question

Full Specifications

W-33

Length Overall 32.71'

Beam 7.77'

Dry Weight 1,808 lbs

Max Capacity 6,615 lbs

Transom Height 22"

Single Motor 115–250 HP

Twin Option 115–300 HP each

Rail Type Standard Rail

Configure This Build (574) 971-1380

Yamaha Outboards

Recommended Power

The W-33 is rated for 115–250 HP single motor or twin 115–300 HP. Every motor is installed and rigged at our Cape Coral facility by Yamaha-certified technicians — controls, cables, harness, ignition, and battery included.

Motor selection affects planing speed, fuel economy, and top-end performance. We'll help you choose based on how you use the water, your crew size, and your budget.

Twin-engine option available: 115–300 HP per side — adds redundancy for offshore and commercial operations.

Base

Yamaha F150

150 HP

Base price-point motor for the W-33. About 30 mph at cruise and 35–42 mph wide open.

Balanced

Yamaha F200

200 HP

A step up for heavier loads and longer offshore runs.

Ideal

Yamaha F250

250 HP

All-around ideal horsepower for this hull.

Tested On the Water

Performance Data

Results may vary from those shown above. Actual performance depends on load, sea conditions, prop selection, and motor configuration.

Top Speed 42 mph

Yamaha F150

WOT Economy 2 mpg

@ 42 mph

Cruise Economy 4 mpg

Yamaha F150

Cruise Speed 30 mph

@ 4 mpg

Motor	Test Weight	RPM	Speed	Fuel Economy
Yamaha F150 · Cruise	—	—	30 mph	4 mpg
Yamaha F150 · WOT	—	—	42 mph	2 mpg

Every Build Starts Here

Standard Build Packages

These five packages are included on every W-33 we build — the functional baseline that covers safety, electrical, helm, and rigging before any custom options are added.

Navigation Package

Essential safety and electrical equipment required for legal operation on U.S. waters.

✓ Navigation lights
✓ Auto bilge
✓ Fire extinguisher
✓ Electronic horn

Console Package

Fiberglass helm console with mechanical steering — the foundation of your helm station.

✓ Fiberglass console
✓ Mechanical steering
✓ Floor boot

Gauge Package

Yamaha instrumentation and electrical panel for full engine monitoring and switched accessory control.

✓ Yamaha tachometer with harness
✓ Fuel gauge
✓ 6-position fuse panel
✓ 4-position illuminated switch panel

Rigging Package

Everything needed to connect your Yamaha outboard to the helm — controls, cables, wiring, ignition, and a marine battery.

✓ Side-mount Yamaha control
✓ Control cables
✓ Engine harness
✓ Key switch
✓ 24-series Decka marine battery with hold-down

Floor Package

Fiberglass molded flooring with non-skid texture — a clean, durable surface that protects the hull and your footing.

✓ Fiberglass molded floor with non-skid texture

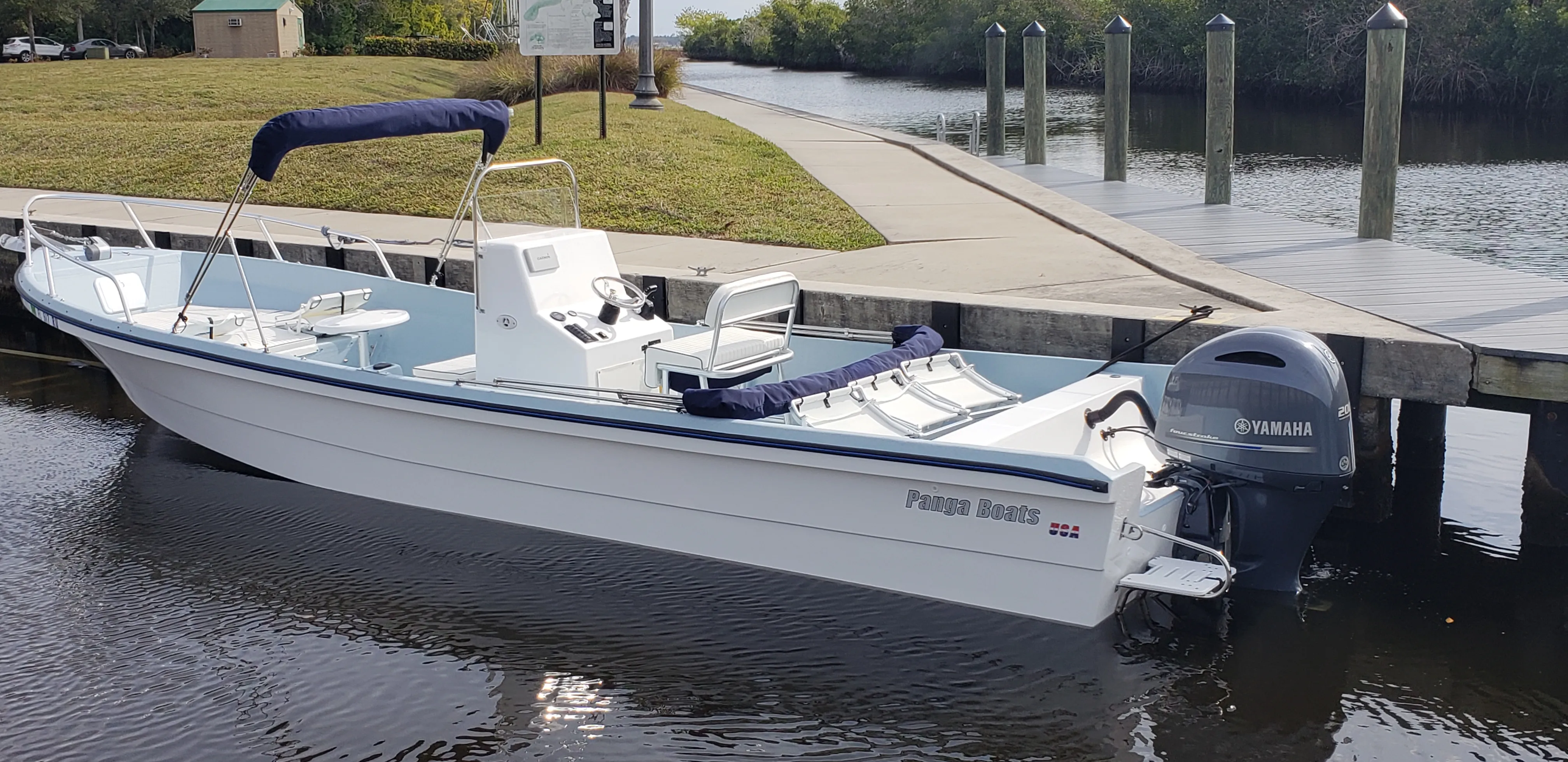

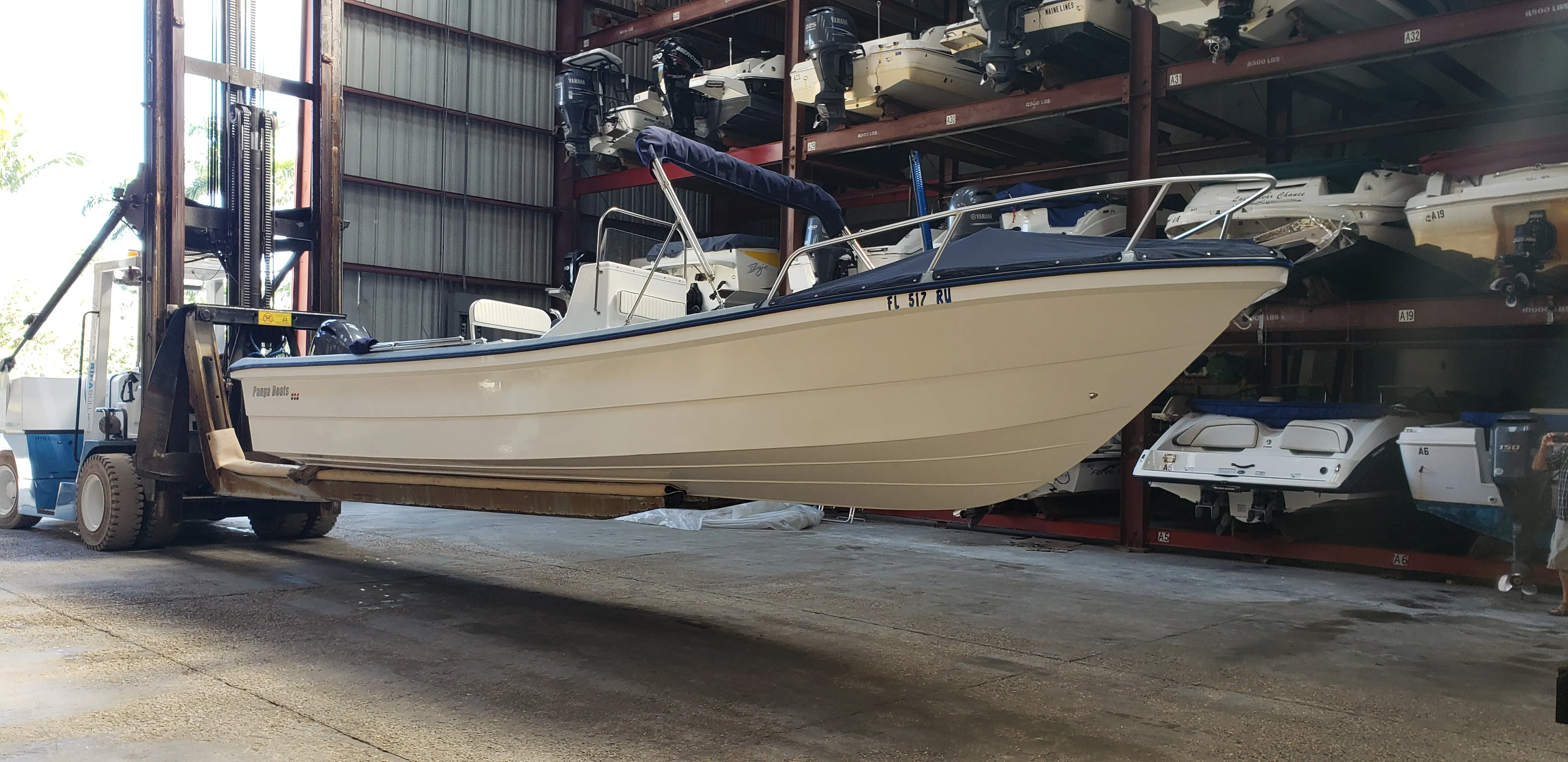

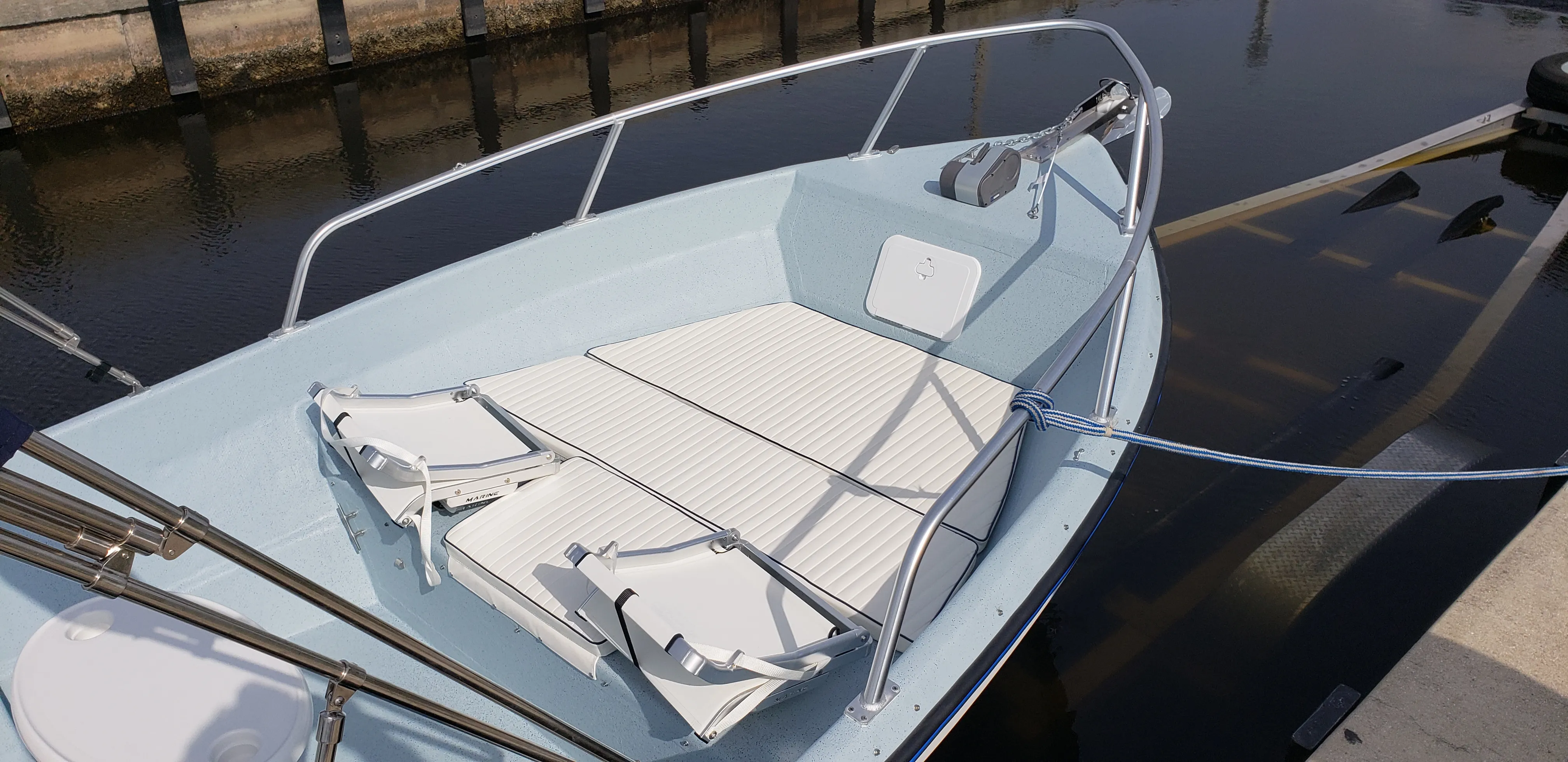

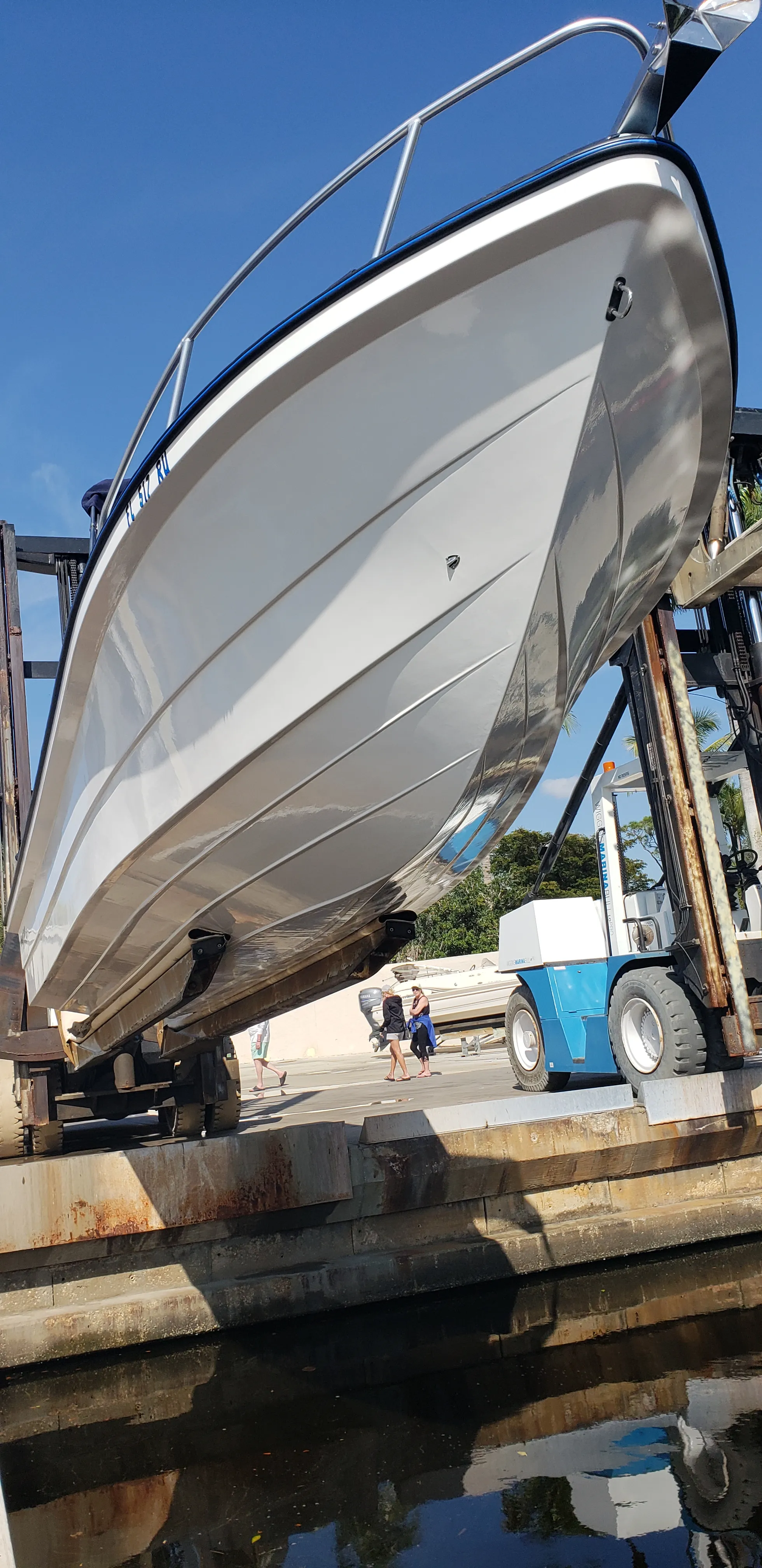

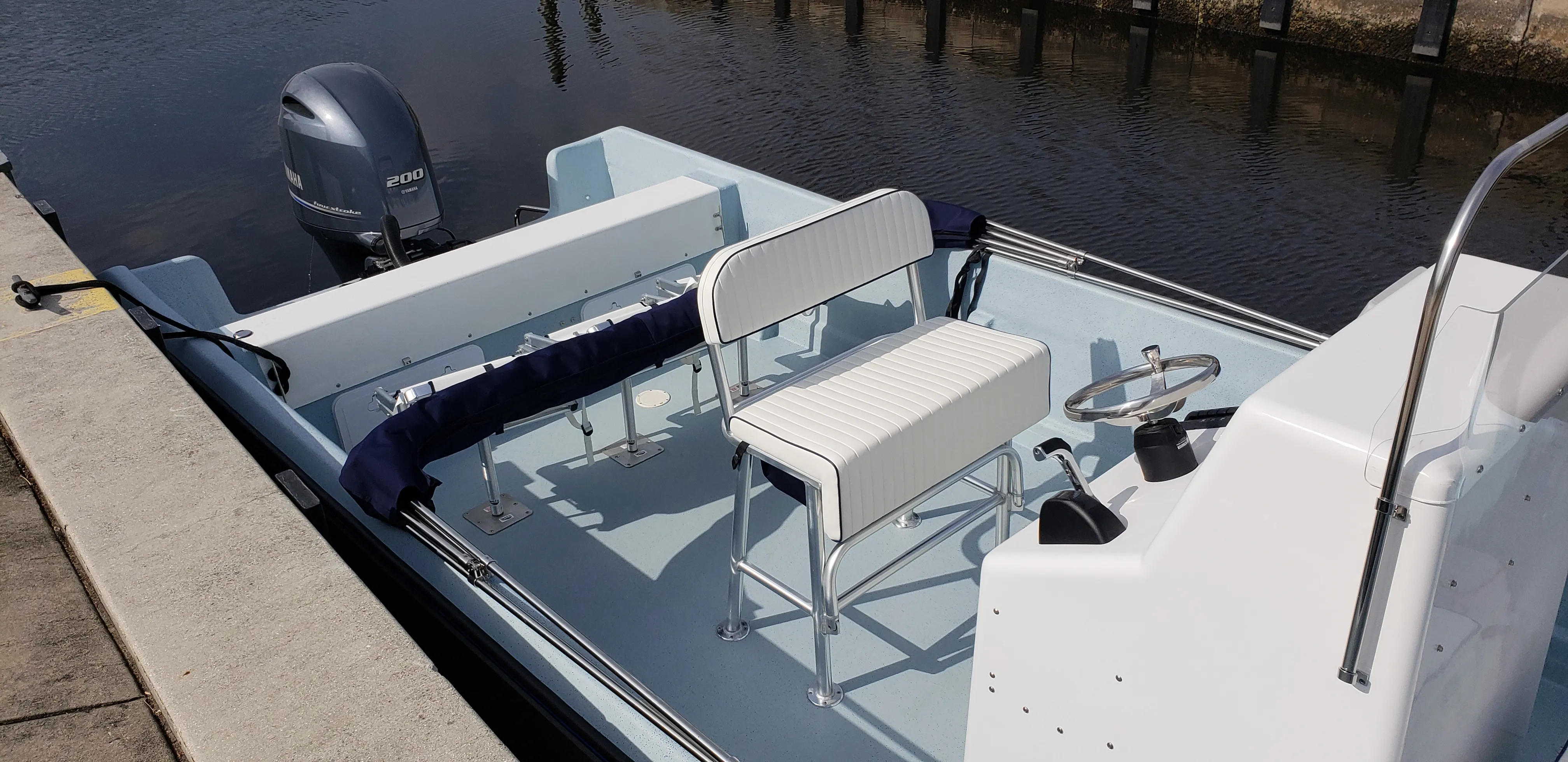

Photo Gallery

W-33 in Action

Customize Your Build

Available Options

Every option below can be added to your W-33. We fabricate and install everything in-house at our Cape Coral facility.

Get a Quote

Category	Option	Details
Bimini, T-Top & Shade Sun and weather protection from a simple bimini to a full 7-foot T-top with integrated rod holders, outriggers, and lighting.	Deluxe 8' Bimini Top	316 stainless steel frame with Sunbrella fabric for long-lasting UV and weather resistance.
	Deluxe 42" x 7' T-Top	Full overhead shade and a rigid mounting platform for electronics, lights, and outriggers.
	T-Top Electronics Box	Lockable storage box mounted to the T-top for protecting VHF radios, chartplotters, and accessories.
	Rod Holders Welded to T-Top or Leaning Post	Stainless-welded flush rod holders integrated directly into the T-top frame or leaning post.
	T-Top Outriggers	Spreads trolling baits wide for offshore trolling presentations.
	LED Spreader Lights for T-Top	High-output LED spreader lights for night fishing, night navigation, and dock work.
	Isinglass for T-Top	Clear vinyl side curtains that enclose the T-top and protect against spray, wind, and rain.
	T-Bag Storage	Storage bag that hangs from the T-top frame — keeps life jackets, lines, and extra gear off the deck.
Baitwell Fiberglass deluxe baitwells with recirculating pumps — keep live bait healthy from the ramp to the bite.	30-Gallon Fiberglass Deluxe Baitwell with Pump	Ideal for inshore and nearshore applications with a moderate live-bait requirement.
	40-Gallon Fiberglass Deluxe Baitwell with Pump	Larger capacity for offshore trips, heavy bait loads, and charter operations running multiple lines.
Seating & Cushions Bow padding, backrest pads, cooler cushions, and lounge seating to make long days on the water comfortable for you and your crew.	2-Piece 2" Foam Cast-Deck Bow Pad	Split bow pad — easier to remove and store, and works around center-mounted cleats or hatches.
	1-Piece 2" Foam Cast-Deck Bow Pad	Full-coverage single bow pad for a clean, seamless look across the casting deck.
	Bow Lounge	Two swivel seats with bases and a normal-size cast deck. Available on W-22 through W-33 models only.
	Backrest Pad for Tall Console	Padded backrest mounted to the rear of the console for helmsman comfort on long runs.
	Custom Cooler Cushions	Marine-grade cushions fitted to your cooler top — doubles as seating without sacrificing fish storage.
	65-Quart Ice Chest with Custom Cushion	Heavy-duty 65-qt cooler with a custom-fitted cushion top — keeps fish cold and serves as a passenger seat.
	Ice Chest Tie Downs	Secure mounting straps that keep the ice chest in place underway.
	Splashwell Seat Cushion	Cushion fitted to the splashwell for extra seating at the transom.
	Splashwell Back Rest Pad	Padded backrest for splashwell seating — more comfort when running or sitting aft.
Leaning Post Helm-position comfort upgrades for the helmsman — padded backrest, foot rest, covers, and flip-up seating.	Lean Post Back Rest with Pad	Padded backrest that mounts behind the helm position, giving the captain support during long runs and slow trolling.
	Lean Post Foot Rest	Stainless tube foot rest that allows the helmsman to lean comfortably against the backrest without putting weight on their feet.
	Leaning Post Flip-Up Seat with Storage Bag	Flip-up helm seat with an attached storage bag — sit on long runs, stand when fishing, and keep gear close.
	Leaning Post Cover	Fitted cover that protects the leaning post and pads when the boat is stored or on the trailer.
Console Accessories Helm upgrades ranging from steering and electronics to lighting, covers, and windscreens.	Stainless Steering Wheel with Spinner Knob	Polished 316 stainless wheel with a spinner knob for single-handed helm control.
	Hydraulic Steering	Hydraulic steering upgrade available on every hull — smoother helm feel, especially with larger outboards.
	Console Flap	Covers the helm opening when the boat is stored or unattended — protects electronics and keeps weather out.
	Console Cover	Fitted cover that protects the console, gauges, and helm when the boat is stored or on the trailer.
	Console Shelf	Additional shelf on the console for phones, binoculars, and small gear within reach of the helm.
	12-Volt Accessory Plug on Dash	Flush-mount 12V power outlet on the dash for charging devices and powering accessories.
	6-Position Switch Panel Upgrade	Expanded illuminated switch panel — adds more switched circuits for T-tops, livewells, lights, and accessories.
	Battery Switch	Allows the operator to select between battery banks or isolate batteries for storage.
	Ritchie Compass	Marine compass mounted at the helm for a backup heading reference independent of electronics.
	Electronics Installation	You supply the chartplotter, GPS, or other electronics — we install at $90/hour. Choose any brand and model.
	Marine Stereo with Speakers	Waterproof marine-grade stereo with flush-mount cockpit speakers.
	VHF Radio	Fixed-mount VHF marine radio for communication and emergency DSC distress calling.
	1" LED Courtesy Lights	Recessed LED courtesy lights for cockpit illumination — ideal for pre-dawn departures and night returns.
	Windscreen	Console-mounted windscreen for helm protection from spray and wind at speed.
	316 Stainless Grab Bar Around Windscreen	Polished stainless grab bar mounted around the windscreen perimeter — provides a secure handhold for crew underway.
Additional Options Trolling motors, anchors, dive gear, trailers, Power-Poles, and more — everything else that makes your Panga uniquely yours.	Minn Kota i-Pilot Trolling Motor	GPS-anchor trolling motor with spot-lock and autopilot functions — stays on position automatically so you can focus on fishing.
	Underwater Lights	LED underwater lights for night fishing — attract bait and gamefish around the hull after dark.
	Raw-Water Washdown	Deck-mounted raw-water washdown pump and hose for cleaning fish, rinsing gear, and flushing the cockpit.
	Second Battery	Additional marine battery — isolates house loads from the start battery and extends accessory runtime.
	#8 Danforth Anchor with 15' Chain and 200' Rope	No. 8 Danforth-style anchor with 15 feet of chain and 200 feet of rope — ready to set from the bow.
	Roll-Lock Rod Holder with Base Plate	Adjustable-angle rod holder that locks in any position — works for trolling, soaking bait, or storing rods securely underway.
	3-Step Dive Ladder	Stainless fold-down transom dive ladder — wide, non-slip steps make re-boarding from the water easy for divers in full gear.
	Swim Platform with Swing-Down Ladder	Transom-mounted swim platform with stainless grab rail and a swing-down boarding ladder — easier water access for swimming and snorkeling.
	Fuel Filter	Inline fuel/water separator filter — protects the outboard from water contamination and debris in the fuel supply.
	Outboard Motor Lock	Stainless anti-theft lock for the outboard — secures the motor to the transom bracket when stored at docks or unattended.
	Scuba Tank Track with Adjustable Tank Holders	Stainless deck track system with adjustable holders for securing scuba tanks safely during transport.
	Custom-Made Single-Axle Trailer	Custom-built single-axle bunk trailer sized to fit your hull — galvanized for saltwater use.
	Tandem Axle Trailer	Custom-built tandem-axle bunk trailer sized to fit your hull — extra support for larger pangas and longer tows.
	Spare Tire & Mount for Trailer	Matching spare tire with a mount on the trailer — so a roadside flat does not end the trip.
	Manual Power-Pole	Manual shallow-water anchor that spikes into the bottom to hold position on the flats without a trolling motor.
	Power-Pole	Electric shallow-water anchor — deploy and retract from the helm to hold position quietly in skinny water.
	Bow Rail	Stainless bow rail that runs around the forward deck perimeter — adds safety for bow riders and provides a handhold when anchoring.

Build Inspiration

How Customers Configure the W-33

These are common starting points — every build is fully customized to your preferences, your water, and your budget.

🎣

Fishing Build

For anglers who want bait capacity, rod storage, electronics, and all-day shade.

T-Top (42" × 7')
Livewells (30 or 40 gal)
Rod Holders on T-Top
Chartplotter & VHF Radio
Raw-Water Washdown
Outriggers

⚓

Charter Build

Heavy-duty layout for captains running passengers daily in all conditions.

T-Top with Electronics Box
Seating & Custom Cushions
VHF Radio & Chartplotter
Second Battery
Raw-Water Washdown
Outboard Motor Lock

⛵

Family Build

Comfortable and versatile for families who want a do-everything day boat.

Bimini Top
Bow Cushions
Cooler with Cushion Top
Marine Stereo
LED Courtesy Lights
Bow Rail

Design Your Custom W-33 →

Ready to Build?

Configure Your W-33

Tell us how you use the water — fishing, diving, charter, commercial, or family — and we'll help you spec the right rigging package for this hull.

Start Your Custom Build Call (574) 971-1380 View All Models
